Outdoor Armored G652D G657A1 G657A2 Fiber Optic Cable for Telecom Communication with Steel Tape Armored Protection

全カテゴリー

Outdoor Armored G652D G657A1 G657A2 Fiber Optic Cable for Telecom Communication with Steel Tape Armored Protection

ブランド名:	HX
モデル番号:	HX-GL1
MOQ:	1
価格:	$0.25-0.45

製品の説明

起源の場所:

CE/ROHS/ISO9001

導体の数:

ジャケット素材:

導体コア:

2-288コア

ファイバータイプ:

SM/MM/OM3

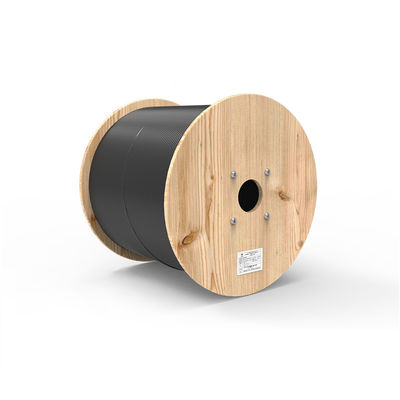

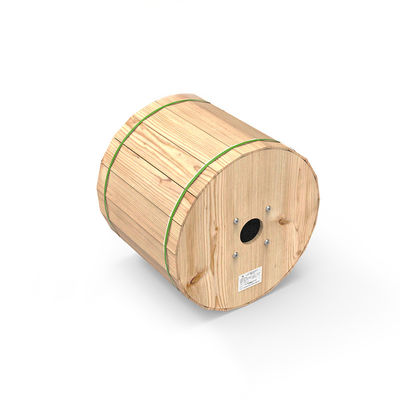

パッキングタイプ:

木製のドラム

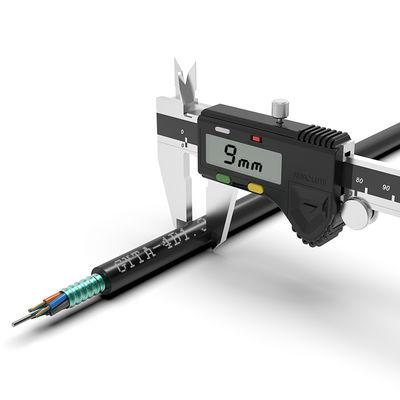

光ケーブル直径:

9.2～20.0mm

光ケーブル重量:

85-300kg/km

600-1000/1500-3000N/100mm

平坦化力:

300/1000N/100mm

温度範囲:

-40～+60℃

最小曲げ半径:

静的: 10x、動的: ケーブル直径の 20x

繊維規格:

G.652/G.653/G.654/G.655

最大繊維数:

ルーズチューブあたり 6 ～ 12

2-288

ハイライト:

G652D Outdoor Armored Fiber Optic Cable

G657A1 GYTA Fiber Optic Cable

G657A2 Duct Armoured Fiber Optic Cable

製品の説明

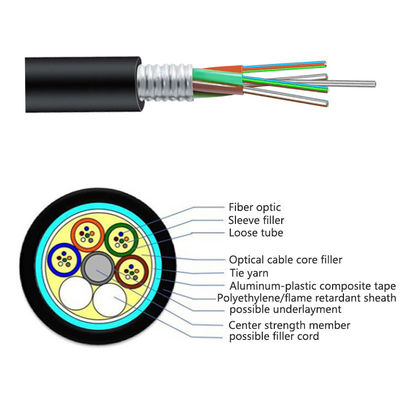

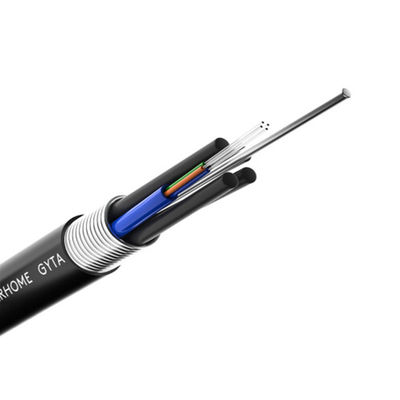

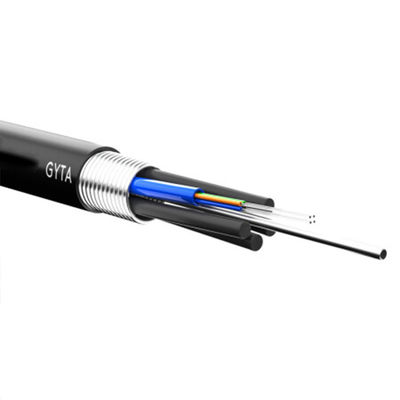

GYTA G652D/G657A1/G657A2 Outdoor Underground Duct Armoured Fiber Optic Cable

High-performance armored fiber optic cable designed for outdoor distribution, long-distance communication, and local area networks. Suitable for aerial and pipeline laying methods.

Technical Specifications

Fiber Optic Cable Model	Fiber Quantity	Optical Cable Core Unit Number	Maximum Number Of Fibers In Loose Tube
GYTA-2∽30	2∽30	5	6
GYTA-32∽36	32∽36	6	6
GYTA-38∽60	38∽60	5	12
GYTA-62∽72	62∽72	6	12
GYTA-74∽96	74∽96	8	12
GYTA-98∽120	98∽120	10	12
GYTA-122∽144	122∽144	12	12
GYTA-146∽216	146∽216	18	12
GYTA-218∽288	218∽288	24	12

Optical Cable Diameter (mm)	Optical Cable Weight (Kg/Km)	Allowable Tensile Force Long-Term/Short-Term (N/100mm)	Allowable Flattening Force Long/Short Term (N/100mm)
9.2	85	600/1500	300/1000
10.2	107	600/1500	300/1000
10.4	110	600/1500	300/1000
11.4	130	600/1500	300/1000
13.6	165	600/1500	300/1000
14.8	195	600/2000	300/1000
16.4	236	600/2500	300/1000
16.4	232	600/2500	300/1000
20.0	300	1000/3000	300/1000

Temperature Range: -40℃ to +60℃

Minimum Bending Radius: Static: 10 times the fiber optic cable diameter | Dynamic: 20 times the fiber optic cable diameter

Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards.

Fiber Standard Comparison

Optical Fiber Type	Multi Mode	Single Mode
G.651	A1a:50/125 (Gradient Refractive Index) A1b:50/126
G.652 (A,B,C,D)		B1.1 Conventional
G.653		B2 zero-dispersion shift
G.654		B1.2 cut-off is long shifted
G.655		B4 non-zero dispersion shift

Applications

Outdoor distribution
Suitable for aerial and pipeline laying methods
Long distance and local area network communication

Key Characteristics

Steel wire strength with filler protection
Tube fiber with steel tape armor
Excellent UV radiation resistance
Superior moisture resistance

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
