| ブランド名: | HX |
| モデル番号: | HX-GL2 |
| MOQ: | 1 |
| Parameter | G.652 | G.655 | 50/125 μm | 62.5/125 μm |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | ||
| @1550nm | ≤0.22dB/km | ≤0.23 dB/km | ||
| Bandwidth (A-level) | ≥500 MHz*km | ≥200 MHz*km | ||
| @1300nm | ≥1000 MHz*km | ≥600 MHz*km | ||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Optical fiber cable cut-off wavelength | ≤1260nm | ≤1450nm | ||

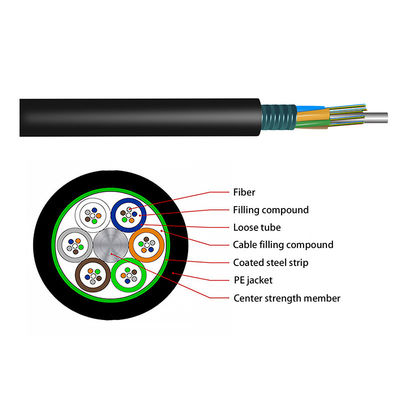

| Optic fibre cable | Number of fibers | Number of casings | Number of filling ropes | Fiber optic cable diameter (mm) |
|---|---|---|---|---|
| GYTA-2~6 | 2~6 | 1 | 4 | 9.2 |
| GYTA-8~12 | 8~12 | 2 | 3 | 9.2 |
| GYTA-14～18 | 14~18 | 3 | 2 | 9.2 |
| GYTA-20~24 | 20~24 | 4 | 1 | 9.2 |
| GYTA-26~30 | 26~30 | 5 | 0 | 9.2 |
| GYTA-32~36 | 32~36 | 6 | 0 | 9.7 |
| GYTA-38～48 | 38~48 | 4 | 1 | 10.5 |
| GYTA-50~60 | 50~60 | 5 | 0 | 10.5 |
| GYTA-62~72 | 62~72 | 6 | 0 | 11.5 |
| GYTA-74~84 | 74~84 | 7 | 1 | 13.2 |
| GYTA-86～96 | 86~96 | 8 | 0 | 13.2 |
| Fiber Optic Cable Weight (kg/km) | Allowable tensile force long term/short term (N) | Allowable flat pressure long term/short term (N/100mm) | Bending radius static/dynamic (mm) |
|---|---|---|---|
| 80 | 600/1500 | 300/1000 | 10D/20D |
| 97 | 1000/3000 |
Temperature range: -40°C to +70°C (The above parameters are for reference only)
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
1KM. We support new project of our customers, trial order is available.
Yes, we provide FREE sample and you just need to pay for express freight.
Yes, we can customize according to your requirements (logo, package, printing and so on).
Our usual delivery date takes 15 to 20 days.
We founded the factory has 18 years of history, products exported to over 25 countries.
At the same price, our quality is better; at the same quality, our price is more favorable.
L/C, T/T, Western Union and Paypal are acceptable.
Ocean transportation, air transport, Express, etc.
|
|
